High-Performance FIMT Cables in Stock
This page features our portfolio of high-performance Fiber in Metal Tube (FIMT) products, available for immediate deployment. Engineered to our exacting quality standards, these stock cables are a proven choice for time-sensitive projects.
While these options cover many common applications, our core strength is creating fully customized cables. Should your project require a unique design, we invite you to contact our team to develop a solution tailored to your precise needs.
Filter
Outer Diameter (mm)
Number Of Fibers
Length (km)
Temperature Rating (°C)
Product Groups
Single Layer FIMT
Universal Cable

Single Layer FIMT
Outer Diameter
1.25mm
Fiber Count
2
Temperature Rating
-60 - +150°C
Available Length
5.425 km

Single Layer FIMT
Outer Diameter
3.5mm
Fiber Count
16
Temperature Rating
-40 - +80°C
Available Length
6 km

Universal Cable
Outer Diameter
7.7mm
Fiber Count
24
Temperature Rating
-40 - +80°C
Available Length
5.179 km

Single Layer FIMT
Outer Diameter
3.6mm
Fiber Count
24
Temperature Rating
-40 - +80°C
Available Length
2.8 km

Single Layer FIMT
Outer Diameter
3mm
Fiber Count
32
Temperature Rating
-40 - +80°C
Available Length
6.78 km

Single Layer FIMT
Outer Diameter
3mm
Fiber Count
32
Temperature Rating
-40 - +80°C
Available Length
3.92 km

Single Layer FIMT
Outer Diameter
3mm
Fiber Count
36
Temperature Rating
-40 - +80°C
Available Length
4.12 km

Single Layer FIMT
Outer Diameter
3mm
Fiber Count
24
Temperature Rating
-40 - +80°C
Available Length
7.5 km

Universal Cable
Outer Diameter
7.7mm
Fiber Count
24
Temperature Rating
-40 - +80°C
Available Length
2.394 km
Product Details

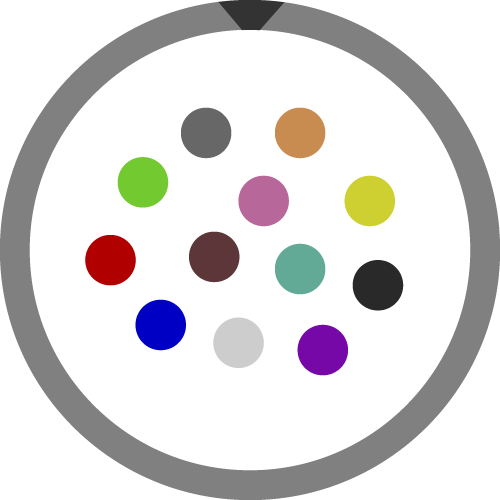

Single Layer FIMT
L1: 1.25/1.00/316L
EFL: 0.06% - 0.07%
Fiber Type 1: 2x G652D HTC200
Fiber Type 2:
Filling Compound: Itco HA110
Temperature Rating: -60 - +150°C
Ref: 34367
Available Length
5.425 km
Product Details
Single Layer FIMT
L1: 3.5/3.1/316L
EFL: 0.3% - 0.5%
Fiber Type 1: 16x G.652.D
Fiber Type 2:
Filling Compound: Optifill H2000
Temperature Rating: -40 - +80°C
Ref: 36439
Available Length
6 km
Product Details

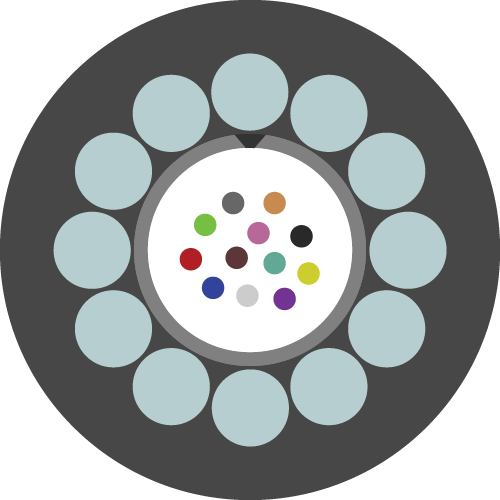

Universal Cable
L1: 7.70/4.70/PA6 L2: 12x 0.93mm steel wire/304 L3: 2.80/2.40/304
EFL: 0.30% - 0.38%
Fiber Type 1: 24x G652D
Fiber Type 2:
Filling Compound: Infogel LA444
Temperature Rating: -40 - +80°C
Ref: 10602
Available Length
5.179 km
Product Details
Single Layer FIMT
L1: 3.6/3.2/304
EFL: 0.34% - 0.40%
Fiber Type 1: 24x G652D
Fiber Type 2:
Filling Compound: Infogel LA HX1
Temperature Rating: -40 - +80°C
Ref: 35817
Available Length
2.8 km
Product Details
Single Layer FIMT
L1: 3.0/2.6/304
EFL: 0.37% - 0.48%
Fiber Type 1: 32x G652D
Fiber Type 2:
Filling Compound: Infogel LA444
Temperature Rating: -40 - +80°C
Ref: 35832
Available Length
6.78 km
Product Details
Single Layer FIMT
L1: 3.0/2.4/304
EFL: 0.32% - 0.46%
Fiber Type 1: 32x G652D
Fiber Type 2:
Filling Compound: Infogel LA444
Temperature Rating: -40 - +80°C
Ref: 35831
Available Length
3.92 km
Product Details
Single Layer FIMT
L1: 3.0/2.6/304
EFL: 0.30% - 0.35%
Fiber Type 1: 36x G652D
Fiber Type 2:
Filling Compound: Infogel LA HX1
Temperature Rating: -40 - +80°C
Ref: 35528
Available Length
4.12 km
Product Details
Single Layer FIMT
L1: 3.0/2.6/304
EFL: 0.36 - 0.42%
Fiber Type 1: 24x G.652.D
Fiber Type 2:
Filling Compound: Unigel 400N HV
Temperature Rating: -40 - +80°C
Ref: 36273
Available Length
7.5 km
Product Details
Universal Cable
L1: 7.70/4.70/PA6 L2: 12x 0.93mm steel wire/304 L3: 2.80/2.40/304
EFL: 0.28% - 0.36%
Fiber Type 1: 24x G652D
Fiber Type 2:
Filling Compound: Infogel LA444
Temperature Rating: -40 - +80°C
Ref: 10601
Available Length
2.394 km
Stock FIMT Inquiry Form
To best assist you with your request and ensure we fully understand your needs, we kindly ask you to complete the following form with any additional information you may have. Your detailed input will help us provide you with a prompt and accurate response.
